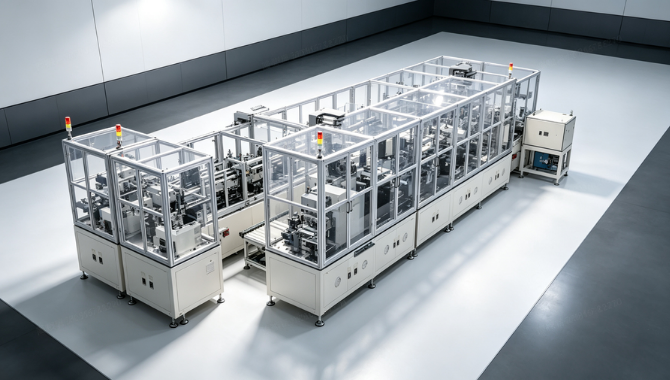

Fully Automatic CHMSL Line
HY fully automatic CHMSL production line with robotic loading, covering housing loading, PCBA assembly, hot-melt welding, lens assembly, vibration friction welding, airtightness testing, EOL final inspection, missing-part detection and laser marking. Independent electrical & optical dual testing with modular quick-change tooling for multiple models. Purpose-built for automotive CHMSL with safety-grade quality control for efficient, compliant mass production.
Why CHMSL Manufacturing Requires Safety-Grade Quality Control
The center high-mounted stop lamp isn’t just another exterior light — it’s a legally required safety component designed to reduce rear-end collisions. Unlike decorative lighting, CHMSL performance is directly tied to road safety, which means manufacturing standards must be significantly higher. Every unit must meet regulated brightness levels, correct red chromaticity and reliable operation across extreme temperatures. This is why automated production lines with integrated testing are essential for CHMSL manufacturing. Manual assembly and sampling inspection simply can’t guarantee the consistency safety components demand. Automated lines assemble every unit the same way, and inline electrical and optical testing verifies performance on 100% of production — not just a sample. For suppliers, the stakes are high: a single defective CHMSL reaching the market can trigger recalls, regulatory penalties and serious safety liability. Investing in a purpose-built CHMSL production line isn’t just about efficiency — it’s about building products that meet the legal and ethical standard expected of safety-critical automotive components. Manufacturers who take this seriously build stronger OEM relationships and reduce their long-term risk exposure.
Customization Options
Station modules such as hot-melt welding, vibration friction welding and airtightness testing can be added or removed per product complexity. Flexibly matches process flows for different CHMSL designs, avoiding redundant investment and controlling equipment cost.
Airtightness test stations support customizable pressure parameters, leak thresholds and test durations for different protection grades. Supports IP6K7, IPX9K and other standards for passenger and commercial vehicle waterproofing requirements.
Optical test stations support customizable parameters and thresholds for brightness, chromaticity, beam angle and uniformity. Set per ECE, SAE, GB regulations or OEM internal standards to meet target market compliance and quality requirements.
Laser marking content, position and depth are customizable, supporting QR codes, serial numbers and production dates. Product grading rules configurable by customer quality standards with automatic sorting, adapting to different QC systems.
Missing-part inspection configurable by component set including lenses, vent plugs, seals and PCBs. Vision or sensor detection options available to ensure all components are properly installed with zero missing-part escapes.
Straight or U-shaped line layouts customizable by workshop space and capacity targets. Automation levels can be upgraded in phases — starting semi-automatic and scaling to full automation — protecting initial investment as business grows.
Product Overview

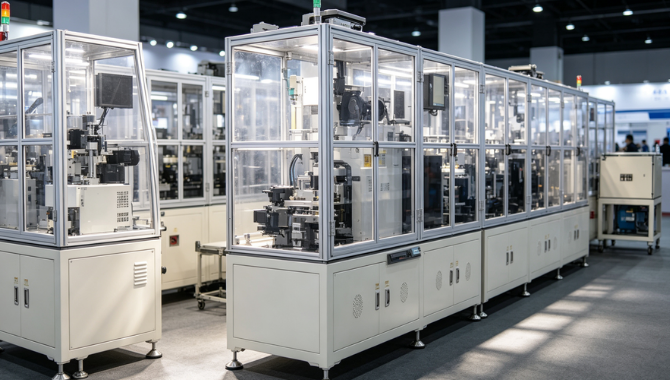

HY High-Mount Stop Lamp (CHMSL) Production Line is purpose-built for automotive center high-mounted stop lamps. Equipped with robotic automatic loading/unloading, its modular design enables fully automated end-to-end assembly. The complete line covers housing loading, PCBA assembly, automatic dispensing, hot-melt welding & inspection, inner/outer lens assembly, vent plug installation, vibration friction welding, assembly airtightness & EOL testing, missing-part detection, pin inspection, laser marking & grading, and automatic off-line packaging. Integrated dual electrical and optical test stations automatically verify electrical performance, luminous brightness, chromaticity and uniformity. Modular quick-change tooling supports multiple CHMSL models on one line with one-click algorithm switching — enabling safety-grade, high-quality, high-efficiency mass production for automotive lighting manufacturers.
The Value of Full-Process Automated Lines for CHMSL Production
CHMSL products involve more assembly steps than many people realize. From housing loading and PCBA placement through hot-melt welding, lens assembly, vent plug installation, vibration friction welding, leak testing and final EOL inspection — there are many points where things can go wrong. When production uses disconnected manual or semi-automatic stations, each handoff introduces opportunities for damage, misalignment or missing components. A fully integrated automated line eliminates these handoff risks entirely. Products move seamlessly from one station to the next on a continuous flow, with robotic handling ensuring consistent positioning every time. Each process station performs its function with repeatable precision, and built-in verification stations confirm that the previous step completed correctly before the product moves forward. This approach delivers measurable results: higher first-pass yield, fewer field failures, more consistent quality across production runs and lower per-unit production cost. For high-volume CHMSL programs, a fully integrated line also means better throughput predictability, which matters when OEM schedules leave no room for delays. Manufacturers running integrated lines typically see faster ramp-up to full production and fewer quality issues during the critical launch phase.
Vibration Friction Welding and Airtightness Testing in CHMSL Builds
Most CHMSL units mount on the exterior of the vehicle, which means they must be reliably sealed against water, dust and pressure washing. Poor sealing leads to moisture inside the lamp, which causes condensation, corrosion and eventual failure — problems that show up after months in service and result in costly warranty claims. Vibration friction welding creates a strong, permanent bond between plastic housing components by rubbing them together under pressure at high frequency. The resulting weld is homogeneous, leak-proof and structurally sound — far more reliable than adhesive bonding for exterior automotive components. But welding alone isn’t enough; every welded assembly needs verification. Integrated airtightness testing stations pressurize or vacuum-test each unit, measuring leak rates against precise thresholds. This 100% inline test catches any seal defects immediately, before the product moves to final testing. For CHMSL manufacturers, combining vibration friction welding with inline leak testing is the gold standard for sealing reliability. It reduces field failures dramatically, simplifies waterproof certification for different IP ratings and gives both the supplier and OEM confidence that every lamp will perform reliably through years of weather exposure.
Hot-Melt Welding Reliability for CHMSL LED Assemblies
The LED array is the heart of any CHMSL, and how it’s mounted inside the housing directly affects long-term reliability. Hot-melt welding — also called heat stake welding — uses precisely controlled thermal energy to melt plastic posts that hold the PCB and lens assembly in place. When done correctly, it creates a permanent, vibration-resistant bond that withstands years of automotive road shock and temperature cycling. The challenge with hot-melt welding is consistency: too much heat damages surrounding components, too little and the joint fails over time. Automated production lines with controlled hot-melt stations deliver the same temperature, pressure and duration on every cycle, producing consistent, reliable welds across the entire production run. Built-in post-weld inspection stations then verify that every stake point formed correctly, catching incomplete or deformed welds before they move downstream. For CHMSL manufacturers, reliable hot-melt welding directly reduces field failures from loose internal components. It also improves optical consistency because the LED board stays precisely positioned over the product’s lifetime, maintaining the designed light output and distribution rather than drifting as stakes loosen.
Product Features & Advantages
- Full-Process Automation, Higher Output & Quality:From housing loading to automatic packaging — one line covers all CHMSL assembly and inspection processes. Robotic automatic loading/unloading with continuous station flow eliminates manual handling, greatly reducing human error and part damage. Fully automated production with stable cycle time delivers significantly higher throughput while ensuring consistent assembly per unit.
- Dual Welding Technology, Strong Reliable Bonds:Equipped with both hot-melt and vibration friction welding technologies for internal component fixation and housing sealing respectively. Hot-melt welding precisely controls temperature and pressure, securely staking PCBs and lenses to the housing with vibration and temperature resistance for long-term tightness. Vibration friction welding creates homogeneous housing seams with excellent sealing and high structural strength.
- Multi-Layer Poka-Yoke, Zero Defect Escapes:The line features multiple poka-yoke checkpoints: post-hot-melt stake formation verification, missing-part vision inspection confirming all components present, pin inspection verifying continuity and position, airtightness seal verification and electro-optical functional testing. Layered gates prevent non-conforming parts from moving downstream, systematically preventing missing parts, misalignment, poor welds and seal defects from escaping.
Application Fields & Scenarios
Sedan CHMSL units mount inside the rear windshield with slim, hidden designs demanding high appearance and uniformity standards. HY lines handle lens assembly, welding and airtightness testing, with optical stations verifying long-strip brightness uniformity and chromaticity consistency for hidden-design performance.
Hatchback spoiler CHMSL integrates into the rear spoiler, exposed externally with high waterproof requirements. HY lines feature vibration friction welding and airtightness stations for reliable housing sealing, with optical and aging verification for outdoor brightness durability — meeting exterior component standards.
SUV tailgate CHMSL units are larger with complex shapes, often integrated with spoilers. HY modular lines handle large housing assembly and welding with multi-station coordination for complex builds, with optical inspection covering large emitting surfaces for uniformity and pattern distribution.
EV models often integrate CHMSL with spoilers and through-taillights in streamlined designs with high cosmetic standards. HY lines combine precision assembly and CCD appearance inspection, ensuring both lighting performance and cosmetic quality match premium EV design trends.
Why Choose HY
Over a decade in automotive signal lighting with deep knowledge of CHMSL and other regulated safety component standards — solutions tailored for compliant production.
Full-cycle service from process design and manufacturing to commissioning, training and maintenance — local technical team with fast response for smooth production ramp-up.
Built-in poka-yoke stations including missing-part and pin inspection with multi-layer assembly verification — preventing defect escapes for tighter quality control.
