Precision Assembly, Comprehensive Testing

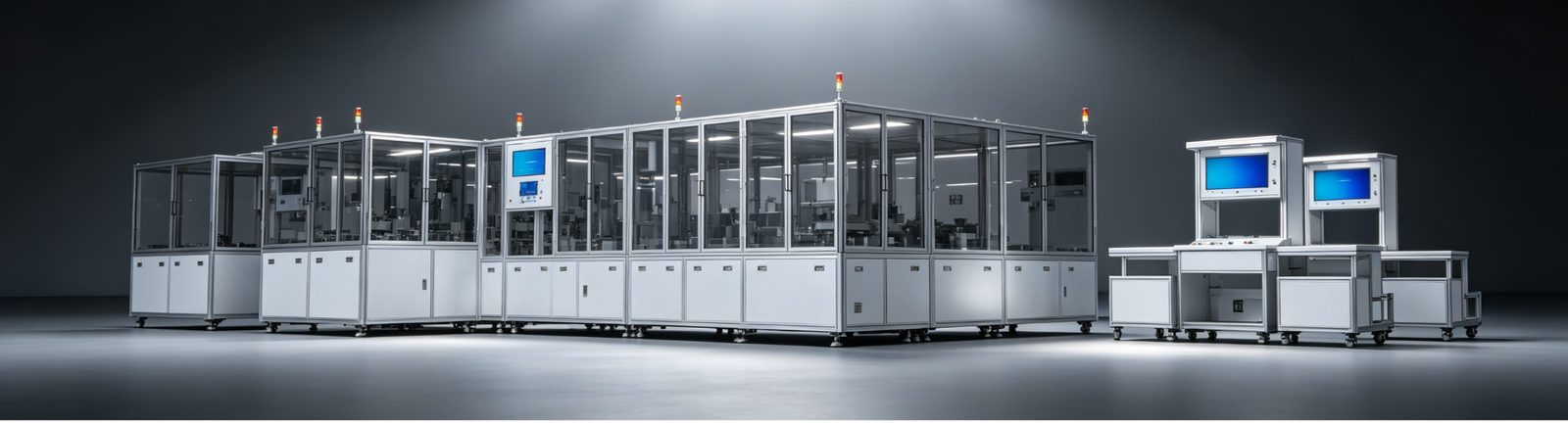

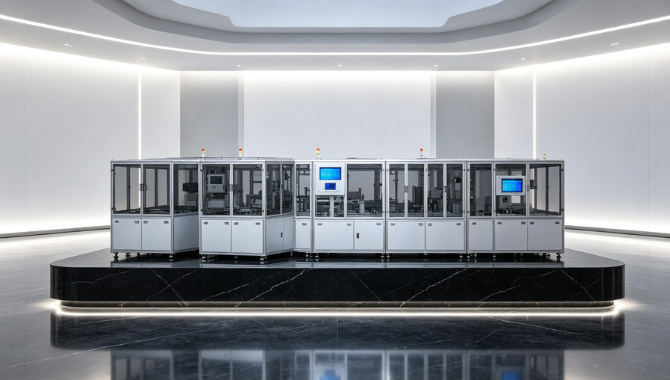

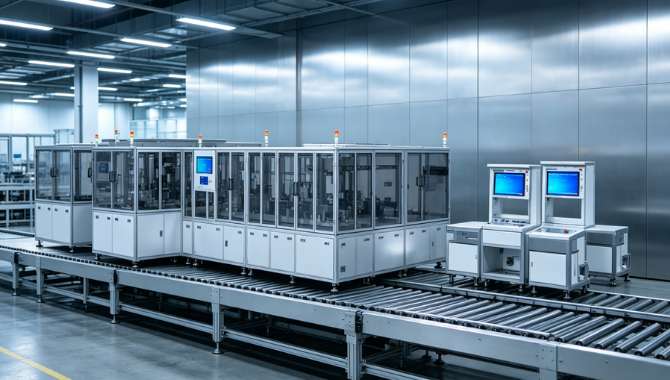

HY has been deeply engaged in automotive precision assembly and optical inspection for over a decade. We deeply understand the stringent requirements of interior small lamp products for assembly precision and optical performance. Our interior small lamp production line uses robotic automatic loading and assembly technology with positioning accuracy up to ±0.02mm, ensuring precise and consistent multi-component assembly. Equipped with self-developed high-precision inspection systems, it can perform full-item testing including illuminance, color temperature, button force curves, and electrical performance, reducing defect rates to below 0.4%. Starting from HY, safeguard your product quality with professional technology and win market and customer trust.
Button Force Testing: Ensuring Interior Lamp User Experience
The button feel of interior small lamps is an important factor affecting user experience, directly related to product quality perception and grade. Traditional manual feel testing is highly subjective, making it difficult to ensure consistency, let alone quantitatively evaluate parameters such as button force, stroke, and rebound. The professional button testing system equipped in HY interior small lamp production line can accurately measure key indicators including button force-displacement curves, open/closed circuit resistance, and operational life. The system supports multi-button synchronous testing with customizable pressing force and speed parameters, ensuring consistent button feel across all products, meeting ergonomic design requirements. Precise button testing is an important guarantee for improving the quality perception of interior products.
Customization Options
Custom Assembly Station Configuration
Flexibly configure the number and sequence of stations including housing assembly, light guide installation, lens assembly, and PCB soldering based on different interior small lamp product assembly process requirements. Supports addition or removal of robotic loading units, allowing随时 adjustment of production takt time to meet differentiated production needs for different products.
Custom Optical Inspection Items
Custom-configure inspection items including backlight area brightness and color, reading lamp illuminance and color temperature, and lighting lamp illuminance and color temperature based on the optical characteristics of different types of interior small lamps. Supports custom illuminance thresholds, color tolerance ranges, and other criteria, adaptable to inspection needs of various products including dome lights, reading lamps, and ambient mini lights.
Custom Line Layout and Takt Time
Custom-design optimal production line layout solutions based on customer factory space, capacity planning, and production takt time. Supports various layout forms including linear, U-shaped, and circular lines, optimizing robot operation paths and material flow to maximize space utilization and production efficiency.
Custom Post-Process Functions
Customize post-process functions including laser marking, protective film application, finished product tray loading, and NG sorting and discharge based on customer needs. Supports custom marking content and positions, protective film specifications and application accuracy, achieving full-process automation from assembly to finished product packaging.
Protective Film Application: Protecting Interior Lamp Quality
The lens surfaces of interior small lamps are easily scratched and contaminated during production and transportation, directly affecting product appearance and optical performance. Traditional manual film application is not only inefficient but also prone to issues such as bubbles and misalignment. HY interior small lamp production line is equipped with automatic protective film application functionality, which can automatically apply protective film after lens assembly is completed, ensuring products are not damaged during subsequent processes and transportation. Automatic film application offers advantages including high positioning accuracy, no bubbles, and no edge lifting, with film application accuracy up to ±0.1mm. Meanwhile, the protective film also provides dust and scratch protection, ensuring products are in perfect condition when delivered to customers. Comprehensive post-process handling is an important环节 for improving product quality and customer satisfaction.
The Role of Laser Marking in Interior Lamp Traceability
In the automotive components industry, product traceability is an important part of quality management systems and a basic requirement of OEMs for suppliers. Laser marking, as an efficient and permanent identification method, plays an important role in interior small lamp production. HY interior small lamp production line integrates laser marking functionality, which can mark information such as production date, batch number, serial number, and QR code on product housings. Laser marking offers advantages including clear marking, permanent wear resistance, and environmental friendliness, making it more suitable for automotive-grade products compared to traditional silk-screening and labeling methods. By scanning the code, all production data and inspection results of the product can be traced, providing strong support for quality issue analysis and recall management.
How to Select the Right Interior Lamp Production Line Supplier
Choosing the right interior small lamp production line supplier is crucial for enterprise product quality and market competitiveness. When selecting suppliers, enterprises should focus on several aspects: first, technical strength—whether the supplier has independent R&D capabilities and whether core inspection algorithms and systems are self-controlled; second, industry experience—whether they have rich automotive interior lighting industry cases and understand automotive-grade standards and special requirements; third, customization capability—whether they can customize assembly and inspection solutions based on different product characteristics; fourth, service capability—whether they can provide full-process service from solution design to installation, commissioning, training, and maintenance; finally, scalability—whether the line supports future upgrades and expansions to protect investment. As a leading supplier of precision assembly and optical inspection equipment in the industry, HY has significant advantages in all these aspects and is a trustworthy partner.
With the deepening development of automotive intelligence and connectivity, interior lighting is evolving from simple functional lighting to intelligent interactive systems. This also poses new challenges to manufacturing technology. Future interior small lamp production lines will develop in several directions: first, higher intelligence, with AI algorithms deeply involved in production process optimization and quality prediction; second, greater integration, with one line compatible with more categories of interior lighting products to achieve true flexible production; third, more comprehensive digitalization, with digital twin technology used for virtual commissioning and operation simulation; fourth, more precise micro-assembly, with the application of new technologies such as Mini-LED, component sizes are getting smaller and assembly precision requirements are increasing. HY always stays at the forefront of technology, continuously conducting R&D and innovation to provide customers with future-oriented production solutions.
Product Features & Advantages
- Multi-area Inspection: Supports multi-area optical inspection including backlight area brightness and color, reading lamp illuminance and color temperature, and lighting lamp illuminance and color temperature, covering all product optical indicators.
- High-precision Measurement: Using professional illuminance meters and colorimeters, inspection accuracy reaches lumen level, far exceeding human eye capabilities and traditional inspection equipment.
- Data Traceability: All optical inspection results are automatically stored and archived, supporting full product lifecycle quality traceability and providing data support for optical design optimization.
- High Process Integration: Integrates multiple processes including assembly, inspection, laser marking, protective film application, and finished product tray loading, completing the entire production flow in one line.

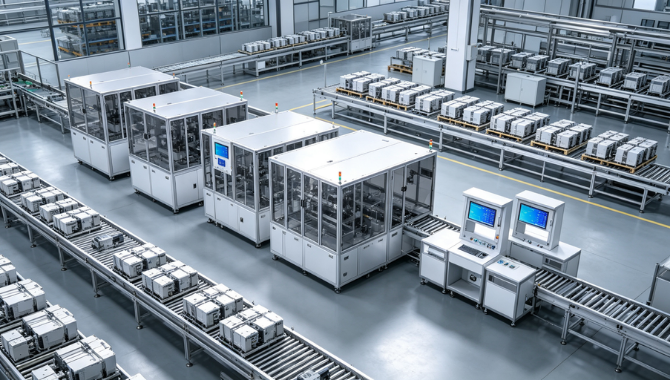

- Logistics Automation: Products flow automatically through circular lines, reducing manual handling, improving production takt time, and lowering labor intensity.
- Automatic NG Discharge: Defective products are automatically sorted and discharged, while qualified products are automatically tray-loaded, achieving unmanned production and reducing manual intervention.
- Real-time Data Collection: Automatically collects production information including equipment status, output, yield rates, inspection data, and defect classification with real-time updates, allowing managers to grasp production status at any time.
- Visual Dashboards: Intuitive data dashboards display key production indicators and quality trends, facilitating quick problem identification and production bottleneck optimization.
- System Integration Capability: Supports integration with upper-level systems such as ERP, PLM, and QMS, breaking information silos and achieving full-process digital management.
Application Fields & Scenarios
Widely applied in assembly and inspection production of interior lighting products including passenger vehicle dome lights, front reading lamps, and rear reading lamps. The production line supports precision assembly of multiple components and fully automatic detection of illuminance and color temperature, ensuring products meet interior lighting standards such as GB 12082 and the strict quality requirements of OEM pre-installation.
Interior small lamp production line specifically designed for NEV smart cockpits, supporting production of intelligent interactive lighting products including touch-sensitive reading lamps, ambient mini lights, and welcome lights. Enables automated testing of functions such as touch response, brightness adjustment, and color temperature switching, adapting to the intelligent and personalized development trend of new energy vehicles.
Serving the automotive aftermarket modification sector, supporting large-scale production of various universal LED interior lamps, ambient mini lights, and reading lamp modules. The production line features quick changeover and high capacity, efficiently addressing the aftermarkets characteristics of rapid product updates and wide variety, helping customers quickly respond to market demands.
Expanded applications in interior lighting for rail transit, marine vessels, and other transportation means, meeting high reliability and durability requirements for special environments. The production line supports assembly and inspection of special specification products with vibration resistance, moisture protection, and wide temperature range, ensuring long-term stable performance of products in complex operating environments.
Why Choose Us
HY deeply understands the stringent quality requirements for automotive interior products. Our interior small lamp production line is designed and manufactured in strict accordance with the IATF 16949 quality management system. The line supports inspection for multiple automotive standards including GB 12082 and ISO 9241, with SPC statistical process control capability. All production and inspection data is traceable, helping customers establish comprehensive quality control systems and successfully pass OEM audits. Choosing HY means choosing reliable automotive-grade quality assurance.
HY interior small lamp production line provides full-process integrated solutions from component loading to finished product unloading, integrating multiple processes including robotic assembly, optical inspection, button testing, laser marking, protective film application, and finished product tray loading. Customers don not need to purchase multiple pieces of equipment for different processes—one line can complete the entire production flow. Integrated design not only saves factory space but also reduces intermediate transfer环节, improving production efficiency and product consistency. Choosing HY means choosing a hassle-free and efficient full-process production solution.
HY interior small lamp production line adopts an innovative modular design concept, with each workstation as an independent functional module that can be flexibly configured as needed. You can choose appropriate configurations based on current capacity and budget, then gradually upgrade and expand later, avoiding excessive one-time investment. Meanwhile, modular design makes maintenance more convenient with significantly reduced downtime. Compared to traditional full-line solutions, HY modular approach offers more flexible investment and higher cost-effectiveness.
